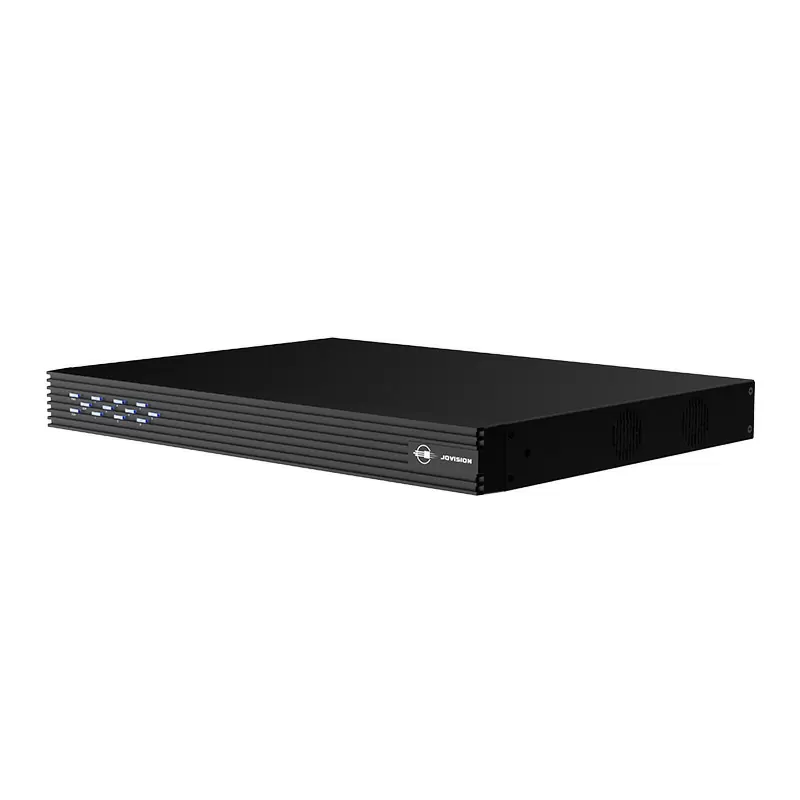

Jovision 9CH Video Wall Decoder
9CH Video Wall Decoder. 9x HDMI Output (Decode 9 screens video wall, Multiple screens can be spliced), 11CH of 8MP/22CH of 5.0MP/ 32CH of 4.0MP/64CH 1080P Decoding Capability, Each output supports 1/4/8/9/16 split screen, Support multi-screen TV-wall, Screen merging and Sequencing
-
2-Year Warranty
Estimate delivery times: 1-3 days (Victoria), 3-5 days (Interstate).
Guaranteed Safe Checkout
SKU |
JVS-D6016-9HD |
Category |
Video Decoder |
Key Features
• 9x HDMI Output (Decode 9 Screens Video Wall, Multiple Screens Can Be Spliced).
• 18CH of 4.0MP, 36CH 1080P Decoding Capability.
• Each Output Supports 1/4/8/9/16 Split Screen.
• Support Multi-screen TV-wall, Screen Merging and Sequencing
Specifications
| Model | JVS-D6016-9HD |
| Hardware | |
| Decoding Ability | 18CH 4.0MP, 36CH 1080P |
| Video Output | 9x HDMI |
| HDMI In | 1x |
| Ethernet | 2x RJ-45,10/100/1000Mbps Adaptive |
| USB | 1x |
| RS232 | 1x |
| RS485 | 1x |
| Audio In | 1x |
| Audio Out | 1x |
| Alarm In | 6x |
| Alarm Out | 4x |
| Features | |
| TV Wall Configuration and Management | Support remote configuration and management of the video wall through the client. |
| Live Video Wall | Support |
| Video Wall Playback | Support |
| Video Wall Sequence | Support set the sequence according to the plan |
| PTZ Control | Support |
| Window Splicing | Support. Maximum 9 or screens arbitrary splicing. After splicing, it supports split screen. Number of split screen is as follows: 1/4/6/8/9/16 |
| Window Roaming | Support . Support up to one window |
| Window Zoom | Window zoom |
| Screen Split | 1/4/8/9/16 |
| Hybrid Decoding | Support |
| RTSP Streaming | Support RTSP streaming from remote device. |
| Language | Support English/Chinese |
| Virtual Banner | Support. Font size, Color, Background can be set |
| Output Resolution | Maximum support 4K output |
| Configuration | Network Configuration (Modify IP), Local upgrade, Factory restoration |
| Device Management | Support Device Search (Protocol Support 1.0, 2.0 ONVIF), Add, Delete, Group |
| Software Projection | Support |
| Hardware Projection | Support |
| Scene Management | Support. Save the Scene For Easy Use |
| Set Background | Support. |
| Access Protocol | CloudSEE Private Protocol/ ONVIF Protocol, Support ONVIF IPC/NVR Access |
| General | |
| Power Supply | AC 220V 50Hz |
| Working Temperature | -10°C ~ 55°C |
| Working Humidity | 10% ~ 90% |
| Dimensions | 440x55x360(mm) |
| Weight | ≤5Kg |
Description
| Brand | Jovision |
| Video Input | 9CH HDMI |
| Connectivity | LAN |
JVS-D6016-9HD 9CH Decorder.pdf
Download
