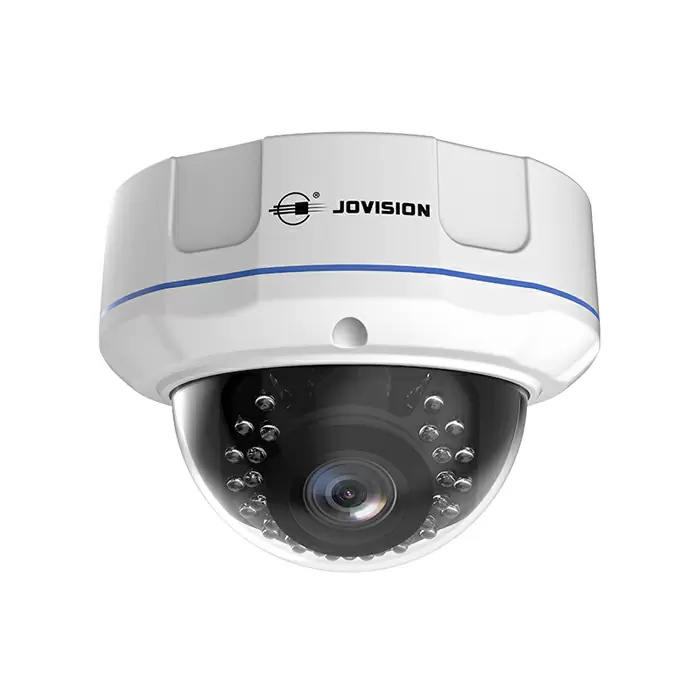

Jovision 4MP Vandalproof Dome PoE IP Camera
IK10 3MP & 4MP Vandalproof Dome Starlight PoE IP Camera. IR range: 35PCS LED lights IR range: 20M, Board Lens 4mm/F2.0, Case: Aluminum, IP66, IK10, DC12V/PoE, Vandalproof
-
2-Year Warranty
Estimate delivery times: 1-3 days (Victoria), 3-5 days (Interstate).
Guaranteed Safe Checkout
SKU |
JVS-N4242 |
Category |
Dome/Turret Cameras |
JVS-N4242
4MP Vandalproof Dome PoE IP Camera
Key Features
• Resolution 2560x1440@25fps
• Starlight function
• 4mm Lens with wide viewing angle
• 35x IR-LED, up to 20 Meters
• Ingress Protection IP66
• Motion Detection with Email Alert
• CloudSEE Embedded
• ONVIF 2.4, Compatible with ONVIF Recorder
Specifications
| Model | JVS-N4242 |
| Video | |
| Image Sensor | 1/3” CMOS Sensor |
| Max. Resolution | 2560x1440 |
| Effective Pixels | 4.0MP |
| Video Compression | H.265 |
| Framerate | 25fps |
| Bitrate | 128Kbps~8Mbps |
| Illumination | 0Lux (IR ON) |
| Lens | |
| Lens | 4mm |
| Viewing Angle | H: 79.6°, V: 47.7°, D: 97.8° |
| IR-Distance | Up to 20m. |
| IR-LEDs | 35Pcs |
| Function | |
| Exposure Control | Auto |
| White Balance | Auto |
| Image Enhancement | 3D DNR |
| Advanced OSD | Support OSD large font function, OSD flashing on alarm, OSD and time to set the position separately |
| Motion Detection | Support |
| Image Setting | Rotate, Saturation, Brightness, Contrast, Sharpness |
| Day and Night Function | Day and night automatic switching |
| Privacy Mask | Support |
| Intelligent Analysis | Not Support |
| Alarm Method | Email Alarm, Client Alarm |
| Remote Operation | System, Audio and video, Image, Alarm,Network management |
| Starlight | Support |
| Network | |
| Ethernet | 1x RJ45 10M / 100M Ethernet |
| Stream | 3x Streams |
| Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| Interoperability | ONVIF 2.4 |
| Network Transmission | CloudSEE 2.0 |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General | |
| Power Supply | DC12V/2A, PoE IEEE 802.3af |
| Consumption | <3W (During day); <7W (At night) |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% Rh |
| Material | Aluminum |
| Dimension | 139.9x101.4mm |
| Weight | 720g |
| Waterproof | IP66 |

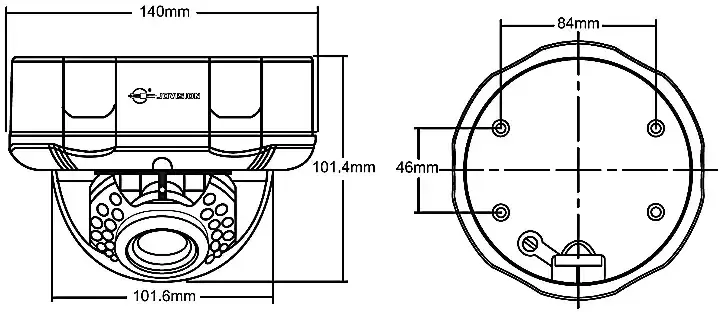

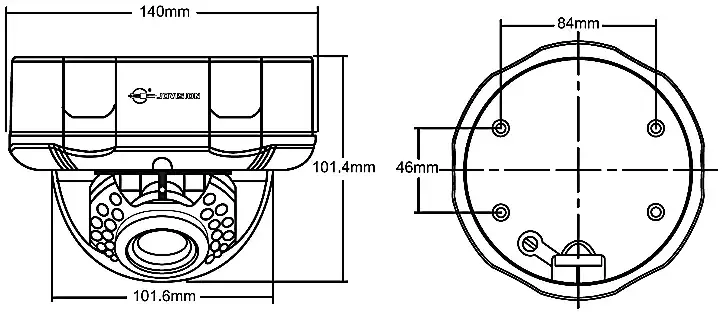

Dimension(mm)
| Resolution | 4MP |
| IP Protection Rating | IP66 |
| Camera Type | Dome Camera |
| Connectivity | PoE |
| Night Vision Range | Up to 20M |
| Special Features | Vandal Proof |
JVS-N4242 4MP Vandalproof Dome PoE IP Camera.pdf
Download
