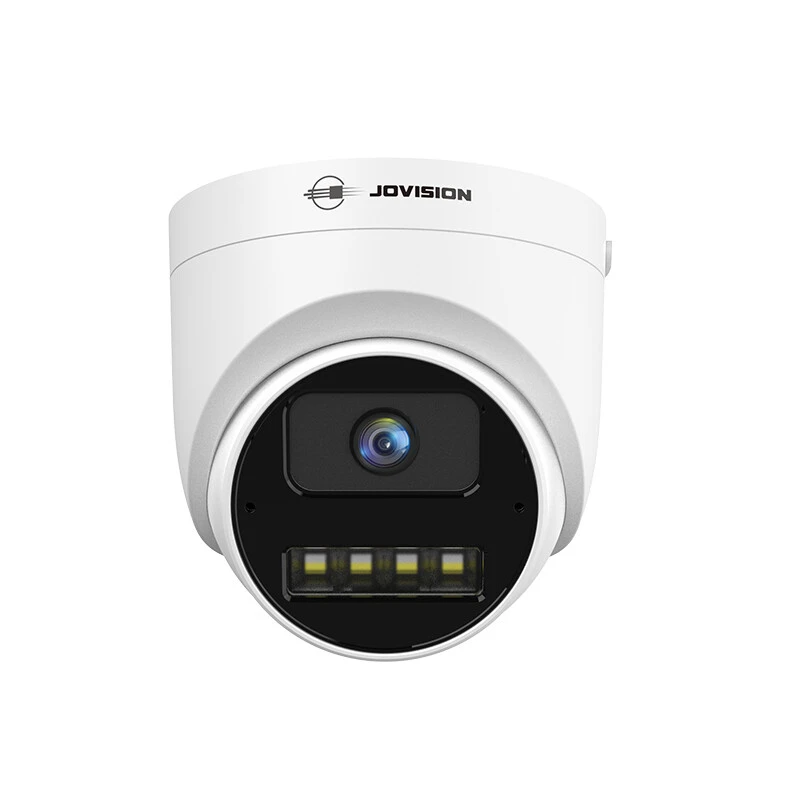

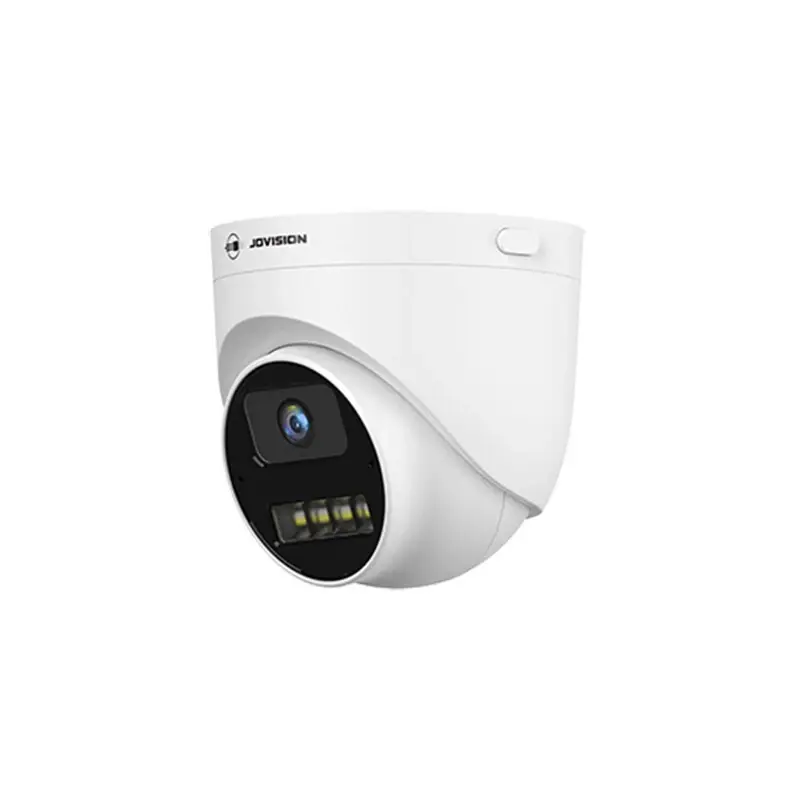

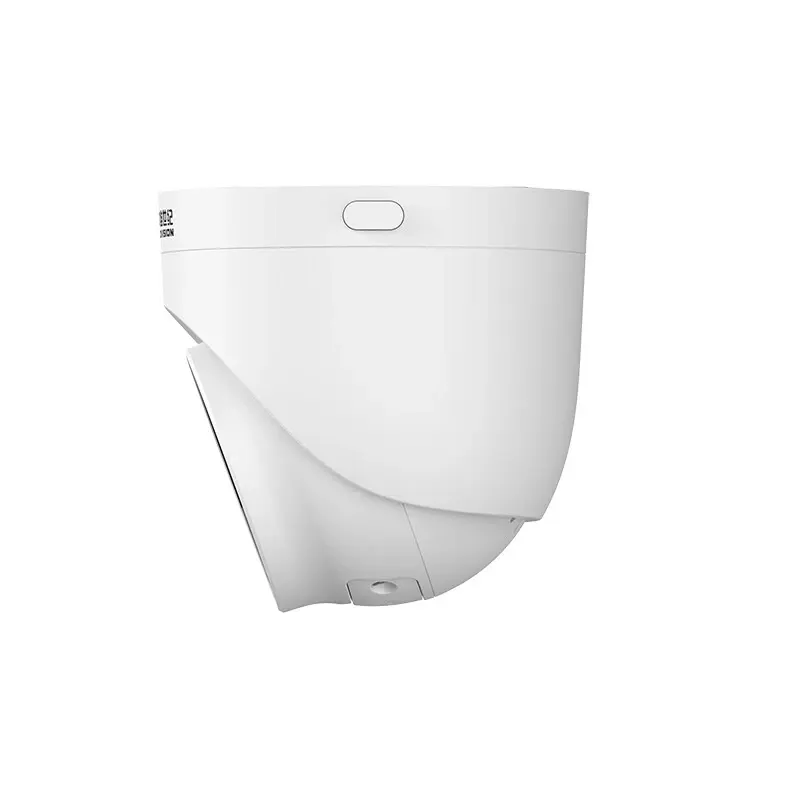

Jovision Full-Color 6MP Security IP Camera with PoE & Audio
6MP Full-Color Video & Audio PoE IP Camera. LED: 4 warm LEDs + 4 IR LEDs, IR range: 30M, Board Len 2.8/3.6mm/F2.0, Case: Plastic, Built-in Mic x 2 and Built-in Speaker x 1, Built-in PoE, Ingress Protection: Indoor Use Only
-
2-Year Warranty
Estimate delivery times: 1-3 days (Victoria), 3-5 days (Interstate).
Guaranteed Safe Checkout
SKU |
JVS-N637-UDL |
Category |
Dome/Turret Cameras |
JVS-N637-UDL
6.0MP Full-Color Video & Audio PoE Network Camera
Features
- Full-Color with Dual Smart Illumination
- Agi Sense Technology for accurate Humanoid Detection and Vehicle Detection
- Built-in Mic and Speaker
- AI-ISP for excellent video performance
- Equipped With unique VQC (Video Quality Catalyst) Technology
- Integrated with unique SAFE function
Specifications
| Video | |
| Image Sensor | 1/3" CMOS Sensor |
| Max. Resolution | 3200x1800 |
| Effective Pixels | 6.0MP |
| Compression Standard | H.264/H.265 |
| Framerate | 25fps |
| Bitrate | Main Stream: 256Kbps ~ 10Mbps Sub Stream: 68Kbps ~ 3072Kbps |
| SNR (dB) | 49.3dB |
| Min. Illumination | 0Lux (light ON) |
| Lens | |
| Interface Type | M12 |
| Lens | 2.8mm |
| FOV | 2.8mm:H 98.4°, V 53.4°, D 114.1° |
| Function | |
| Audio Codec | G.711U/G.711A (Default) |
| Exposure Control | Auto, HLC, BLC |
| White Balance | Auto |
| Gain Control | Auto |
| OSD Information Setting | Large font OSD, OSD flashing on Alarm, OSD Position Settings |
| SNTP | Support |
| Schedule Reboot | Support |
| Smart Defog | Support |
| Motion Detection | Support Humanoid Detection & Vehicle Detection |
| Image Setting | Support Saturation, Brightness, Contrast, Sharpness adjustment |
| Image Style | Standard, Soft, Transparent |
| Day and Night Function | Auto, Always Black & White, Always Color, Scheduled Color |
| Privacy Mask | Support up 8 areas |
| Night Vision Optimization | Support |
| WDR | Support |
| Screen Settings | Screen mirroring, Screen flipping |
| IP Adaptation | Support automatic adaptation of IP address (Optional) |
| Alarm Method | Email Alarm, Client Alarm |
| Remote Operation | System, Audio and Video, Image, Alarm, Network management |
| Audio Function | Built-in Mic x2 and Speaker x1 |
| VQC Technology | Support |
| SAFE Function | Support |
| Network | |
| Ethernet | 10/100Mbps Ethernet |
| Stream | 2x Streams |
| Network Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| ONVIF | Standard ONVIF |
| Network Transmission | CloudSEE 2.0 |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General | |
| Lights | 4x White LEDs + 4x IR LEDs |
| IR Distance | Up to 30 Meters |
| White Led Distance | Up to 20 Meters |
| Waterproof Level | Indoor use only |
| Power Supply | DC12V or PoE (IEEE802.3af) |
| Power Consumption | <3W (During Day); <6W (At Night) |
| Working Temperature | -30°C ~ 60°C |
| Working Humidity | 5% ~ 93% Rh |
| Color/Material | Black & White/ Plastic + Metal |

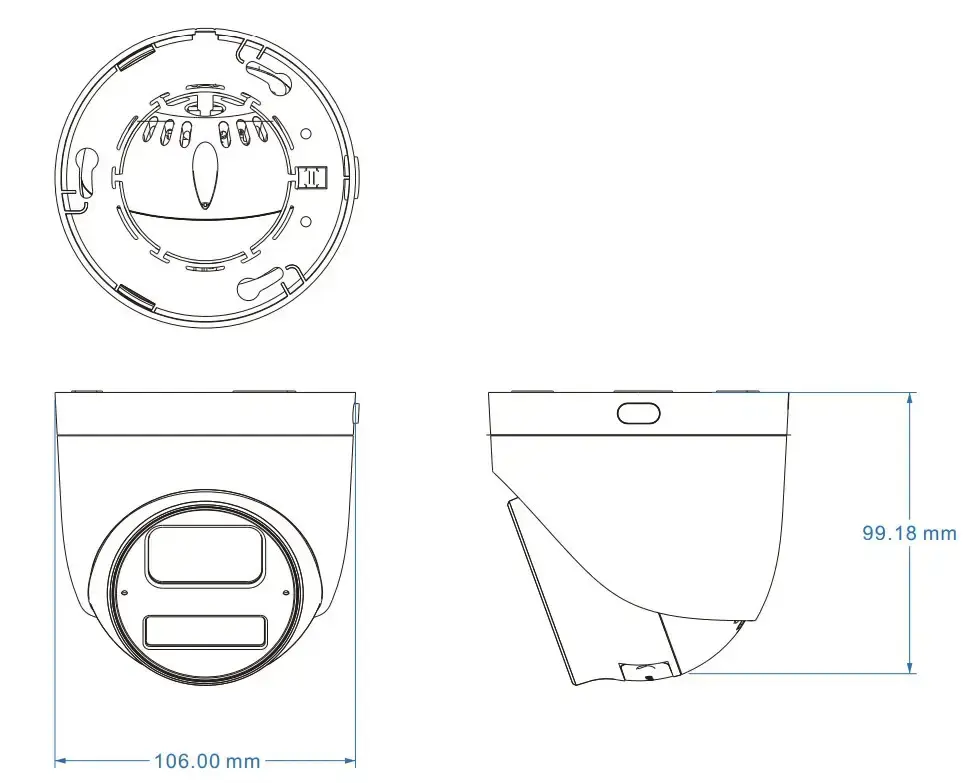

| Dimensions (W x H x D) | 108x104x106mm |
| Weight | 300g |
| Installation Method | Ceiling mount |
| Resolution | 6MP |
| IP Protection Rating | Indoor |
| Camera Type | Dome Camera |
| Connectivity | PoE |
| Night Vision Range | Up to 30M |
| Special Features | AI Detection |
| Audio Function | Built-in Mic and Speaker |
JVS-N637-UDL 6.0MP Full-Color Video Audio PoE Network Camera.pdf
Download
