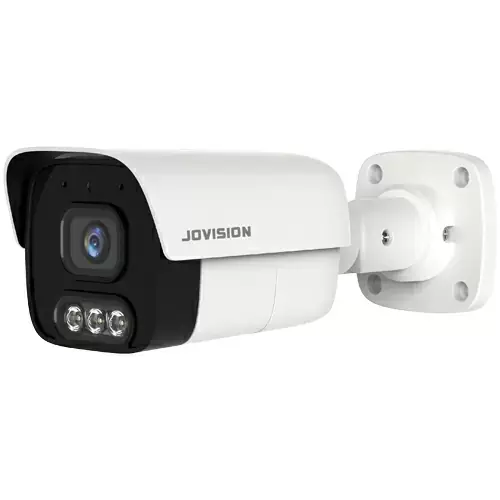

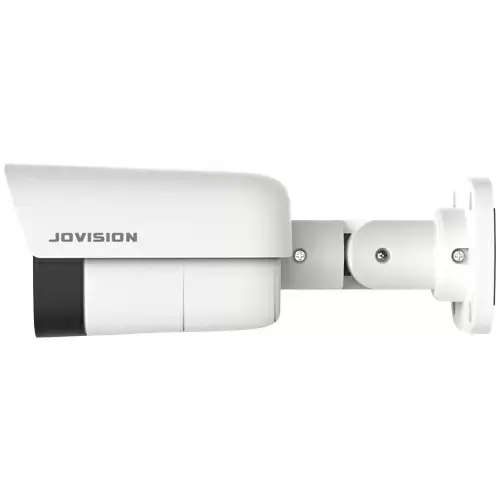

Jovision Full-Color 3MP Security IP Camera with PoE & Audio
3MP Full-Color Video & Audio PoE IP Camera. LED: 3 warm LEDs + 3 IR LEDs, IR range: 30M, Board Len 3.6/6mm/F2.0, Case: Metal, Built-in Mic & Speaker, Built-in PoE, Ingress Protection: IP67
-
2-Year Warranty
Estimate delivery times: 1-3 days (Victoria), 3-5 days (Interstate).
Guaranteed Safe Checkout
SKU |
JVS-N917-YDL |
Category |
Bullet Cameras |
JVS-N917-YDL
3.0MP Full-Color Video & Audio IP Camera
Features
- Support Humanoid Detection
- Built-in Mic and Speaker
- Equipped With unique VQC (Video Quality Catalyst) Technology
- Support SD Card (512GB)
- IP67
Specifications
| Video | |
| Image Sensor | 1/2.9" CMOS Sensor |
| Max Resolution | 2304x1296 |
| Effective Pixels | 3.0MP |
| Compression Standard | H.264/H.265 |
| Framerate | 25fps |
| Bitrate | Main Stream: 294Kbps ~ 8192Kbps Sub Stream: 58Kbps~ 2356Kbps |
| Min. Illumination | 0Lux (light ON) |
| Lens | |
| Interface Type | M12 |
| Lens | 4mm |
| FOV | H 83.4°, V 43.1°, D 99.1° |
| Function | |
| Audio Codec | G.711U (default)/G.711A |
| Gain Control | Auto |
| Digital 3D Noise Reduction | Support |
| OSD Information Setting | Large font OSD, OSD flashing on alarm, OSD position settings |
| Motion Detection | Support Humanoid Detection |
| Image Setting | Support Saturation, Brightness, Contrast, Sharpness adjustment |
| Privacy Mask | Support up 8 areas |
| DWDR | Support |
| Screen Settings | Screen mirroring, Screen flipping |
| Intelligent Analysis | Support Region Intrusion Detection, Line Crossing Detection, Video Tampering Detection |
| Alarm Method | Email Alarm, Client Alarm |
| Remote Operation | System, Audio and Video, Image, Alarm, Network management, Storage management, Intelligent Analysis |
| Audio Function | Built-in Mic and Speaker |
| SD Card | Support(512GB) |
| VQC Technology | Support |
| Network | |
| Ethernet | 10/100Mbps Ethernet |
| Stream | 2x Streams |
| Network Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| ONVIF | Standard ONVIF |
| Network Transmission | CloudSEE 2.0 |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General | |
| Lights | 3 White LEDs + 3 IR LEDs |
| IR Distance | Up to 30 Meters |
| Waterproof Level | IP67 |
| Power Supply | DC12V or PoE |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% Rh |
| Color/Material | Black and White/Plastic and Metal |
| Installation Method | Wall or ceiling mount |
| Resolution | 3MP |
| IP Protection Rating | IP67 |
| Camera Type | Bullet Camera |
| Connectivity | PoE |
| Night Vision Range | Up to 30M |
| Special Features | Full Color |
| Audio Function | Built-in Mic and Speaker |
| SD Card | Support SD Card (512GB) |
JVS-N917-YDL 3.0MP Full-Color Video Audio IP Camera.pdf
Download
