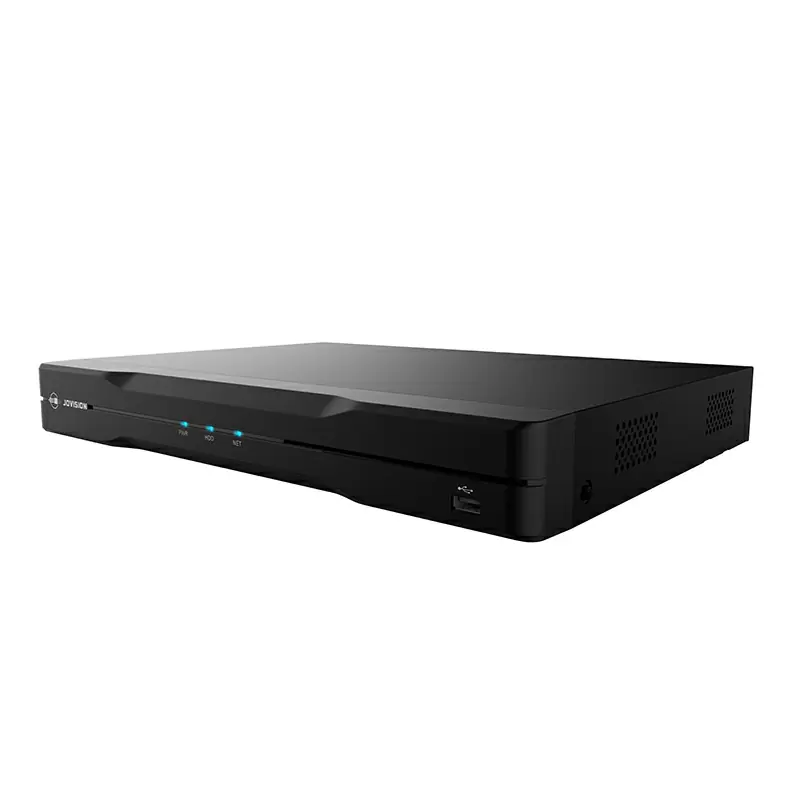

Jovision 32CH Network Video Recorder System
32CH Network Video Recorder with 2HDD support. IP Camera Input: 32CH 720P/960P/1080P/3MP/4MP/5MP/8MP, Playback Resolution: 1CH 8MP/2CH 5MP/3CH 4MP/4CH 3MP/4CH 1080P, 2 SATA Hard Disk Interface (Up to 8TB each), 2 pcs USB 2.0, Standard Color: Black, Dimension: 360X45X264mm
-
2-Year Warranty
Estimate delivery times: 1-3 days (Victoria), 3-5 days (Interstate).
Guaranteed Safe Checkout
SKU |
JVS-ND7932-HV |
Category |
Non-PoE NVRs |
JVS-ND7932-HV
32CH 2HDD H.265 NVR
Key Features
• 4K Video Output
• Adopt the new VStar GUI, easy to operate and run smoothly
• Support intelligent coding VSmart, greatly reducing storage space
• Improved compatibility for HDD. Support 2x SATA max. of 10TB
• Support RS485
• Support Intelligent Detection and Human Detection
Specifications
| Model | JVS-ND7932-HV |
| Video & Audio | |
| IP Camera Input | 32 Channel |
| Audio Input/ Output | 1 Channel RCA Output, 1 Channel RCA Input32 Channel Audio output through HDMI |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Video Output | HDMI：3840x2160/ 1920x1080/ 2560x1440/ 1440x900/ 1280x1024/ 1280x720/ 1024x768 |
| VGA：1920x1080/ 1440x900/ 1280x1024/ 1280x720/ 1024x768 | |
| Max Decoding | 32CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p @25fps |
| Multi-Screen Display | 1/ 4/ 5/ 6 up to 32 |
| OSD | Camera Name & Time, Recording, Alarm Detecting, Remote connection, Volume, Channel Number |
| Recording | |
| Compression | H.265/H.264 |
| Resolution | 32CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p |
| Record Mode | Manual, Schedule, Motion Detection |
| Video Detection & Alarm | |
| Trigger Events | Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer |
| Video Detection | Motion Detection, No Video Detection |
| Playback & Backup | |
| Sync Playback | 2CH 5.0MP / 3CH 4.0MP/ 3CH 3.0MP/ 4CH 1080p |
| Search Mode | Channel Number / Recording Type / Date |
| Playback Function | Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Full Screen, Snap, Sound On/Off, Zoom |
| Backup Mode | FAT32 USB Device/ Network |
| Network & Interfaces | |
| Network Interface | 1 RJ45 (10/100/1000Mbps) |
| Network Function | TCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE |
| Smart Phone | Support iOS, Android App |
| Interoperability | ONVIF 2.4 |
| PTZ Interface | RS485 |
| Storage | |
| SATA | 2 SATA Interface |
| Capacity | Up to 10TB |
| USB | 2x USB |
| General | |
| Power Supply | DC 12V |
| Consumption | ≤15 W (Without HDD) |
| Working Temperature | -10°C ~ 55°C |
| Working Humidity | 10% ~ 90% |
| Dimensions | 360x45x264mm |
| Weight | ≤2.0kg (Without HDD) |
Description
| IP Camera Input | 32 Channel |
| Compression | H.256+ / H.264 |
| H.D.D (SATA) | 2 |
| Capacity | Up to 10TB |
JVS-ND7932-HV 32CH H.265 2xSATA NVR.pdf
Download
