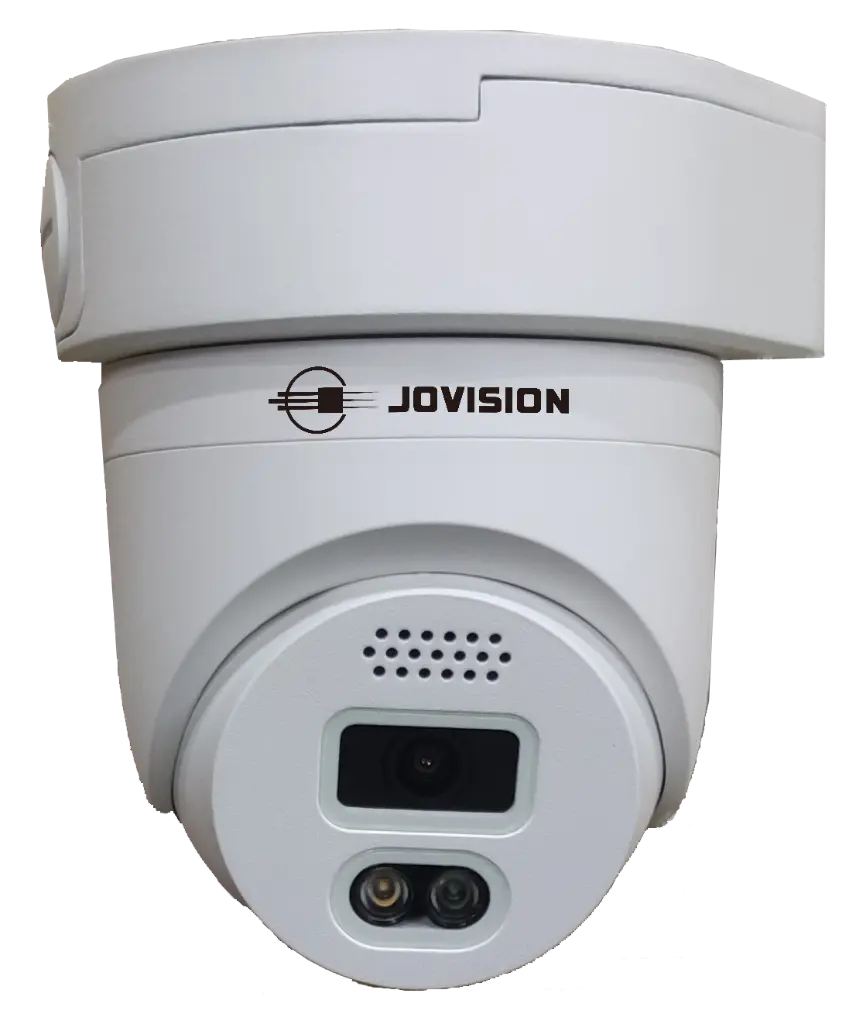

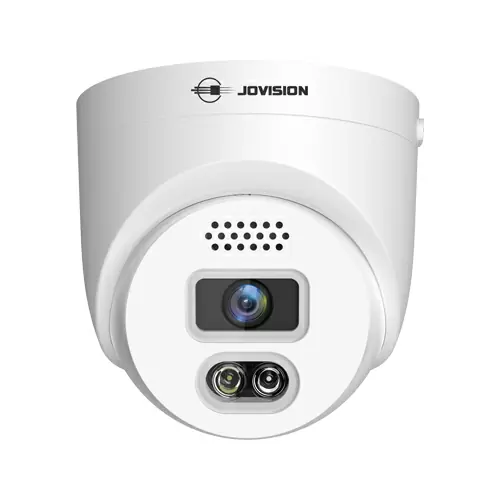

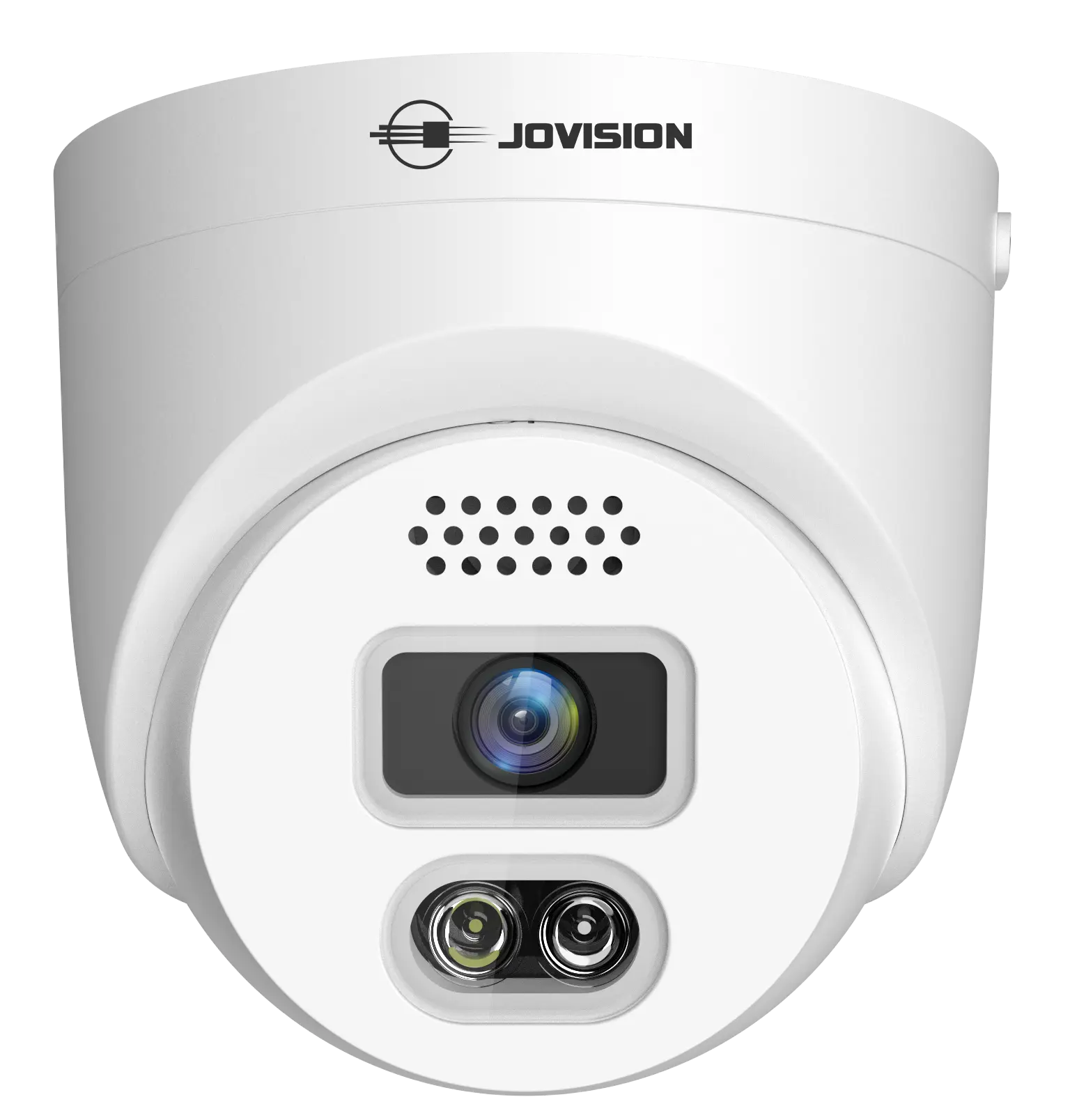

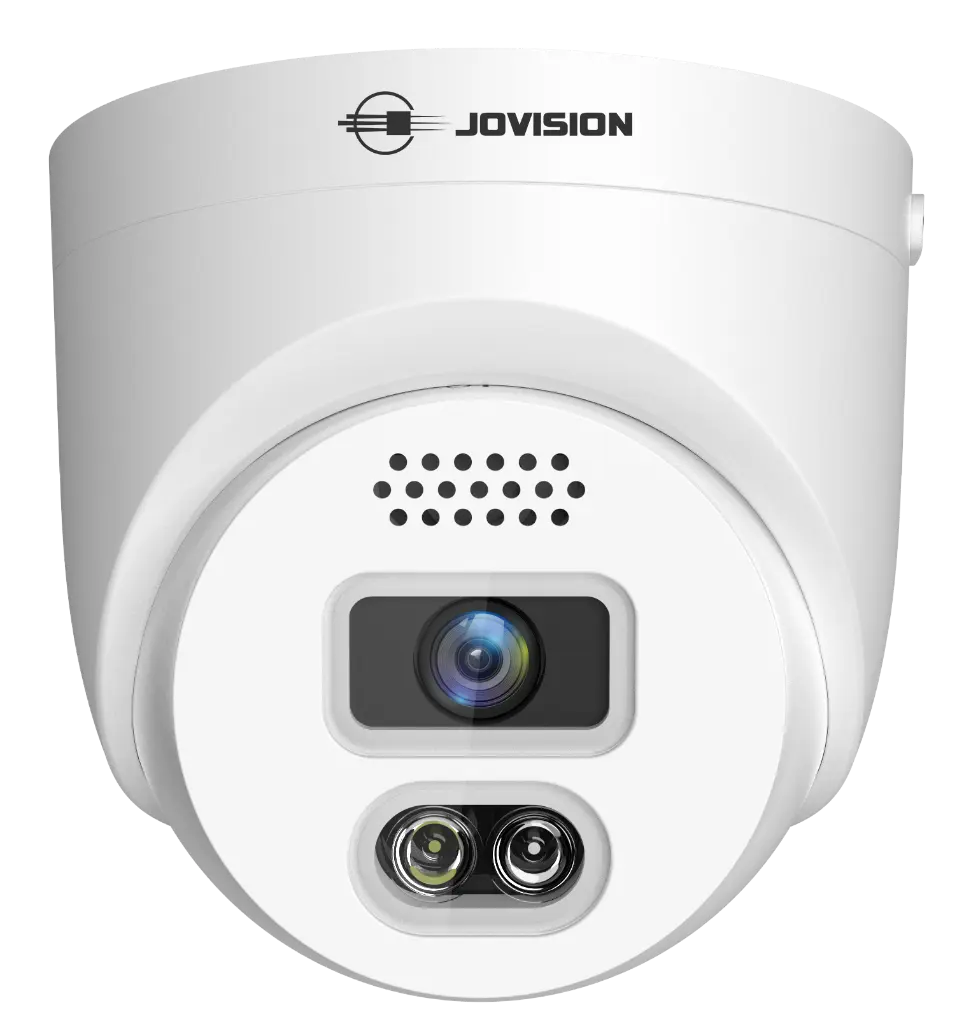

Jovision Full-Color 5MP Security IP Camera with PoE & Audio
5MP Full-Color Video & Audio PoE IP Camera. LED: 1 Warm LEDs + 1 IR LEDs, IR range: 30M, Board Len 2.8/3.6mm/F1.6, Case: Plastic + Metal, Built-in Mic and Speaker, Built-in PoE, Support SD card up to 512GB, Ingress Protection: IP67
-
2-Year Warranty
Estimate delivery times: 1-3 days (Victoria), 3-5 days (Interstate).
Guaranteed Safe Checkout
SKU |
JVS-N537-SDL |
Category |
Dome/Turret Cameras |
JVS-N537-SDL
5.0MP Full-Color Video & Audio PoE Network Camera
Features
- Spotlight on Motion Detection
- Full-Color with Dual Smart Illumination
- Support Humanoid Detection
- Built-in Mic and Speaker
- With built-in PoE
- Equipped With unique VQC (Video Quality Catalyst) Technology
- Support 512GB SD Card
Specifications
| Video | |
| Image Sensor | 1/3" CMOS Sensor |
| Max Resolution | 2560x1792 |
| Effective Pixels | 5.0MP |
| Compression Standard | H.264/H.265 |
| Framerate | 25fps |
| Bitrate | Main Stream: 317Kbps ~ 8MbpsSub Stream: 68Kbps~2728Kbps |
| SNR (dB) | 52dB |
| Min. Illumination | 0Lux (light ON) |
| Lens | |
| Interface Type | M12 |
| Lens | 2.8mm |
| FOV | 2.8mm:H 96°, V 53°, D 110° |
| Function | |
| Audio Codec | G.711U/G.711A (default) |
| Exposure Control | Auto |
| White Balance | Auto |
| Gain Control | Auto |
| Digital 3D Noise Reduction | Support |
| OSD Information Setting | Large font OSD, OSD flashing on alarm, OSD position settings |
| SNTP | Support |
| Schedule Reboot | Support |
| Smart Defog | Support |
| Motion Detection | Support Humanoid Detection |
| Image Setting | Support Saturation, Brightness, Contrast, Sharpness adjustment |
| Image Style | Standard, Soft, Transparent |
| Day and Night Function | Auto, Always Black & White, Always Color, Scheduled Color |
| Privacy Mask | Support up 8 areas |
| Night Vision Optimization | Support |
| DWDR | Support |
| Screen Settings | Screen mirroring, Screen flipping |
| IP Adaptation | Support automatic adaptation of IP address (Optional) |
| Intelligent Analysis | Support Region Intrusion Detection, Line Crossing Detection, Video Blocking Detection, People Counting |
| Alarm Method | Email Alarm, Client Alarm |
| Remote Operation | System, Audio and Video, Image, Alarm, Network management, Storage management, Intelligent Analysis |
| Audio Function | Built-in Mic and Speaker |
| SD Card | Support 512GB |
| VQC Technology | Support |
| Network | |
| Ethernet | 10/100Mbps Ethernet |
| Stream | 2x Streams |
| Network Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| ONVIF | Standard ONVIF |
| Network Transmission | CloudSEE 2.0 |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General | |
| Lights | 2 White LEDs + 2 IR LEDs |
| IR Distance | Up to 30 Meters |
| Waterproof Level | IP67 |
| Power Supply | DC12V or PoE (IEEE802.3af) |
| Power Consumption | <4W (During Day); <6W (At Night) |
| Working Temperature | -25°C ~ 55°C |
| Working Humidity | 5% ~ 95% Rh |
| Color/Material | White/Plastic+Metal |

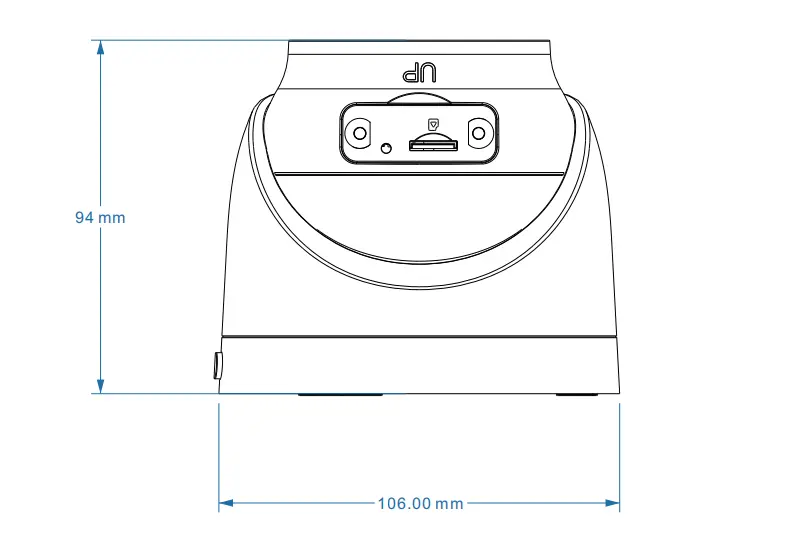

| Dimensions (WxHxD) | 106x94x106mm |
| Weight | 320g |

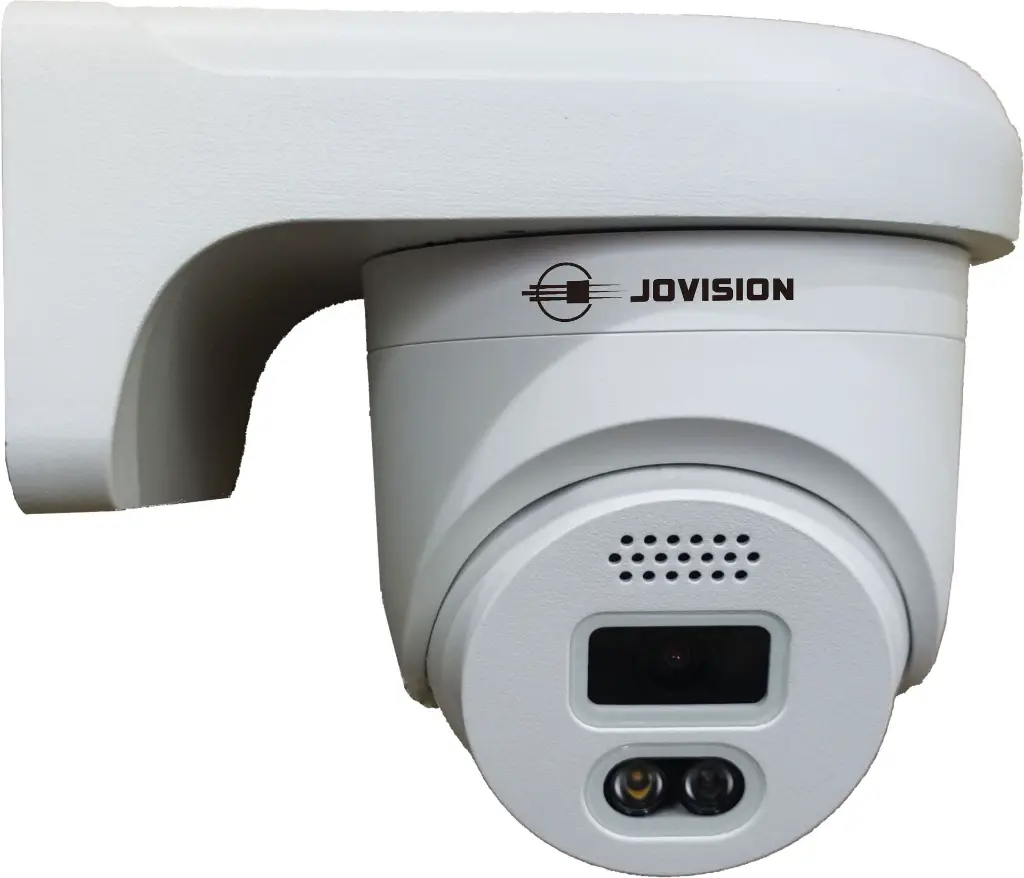

| Installation Method | Wall or ceiling mount |
| Resolution | 5MP |
| IP Protection Rating | IP67 |
| Camera Type | Dome Camera |
| Connectivity | PoE |
| Night Vision Range | Up to 30M |
| Special Features | Full Color |
| Audio Function | Built-in Mic and Speaker |
| SD Card | Support SD Card (512GB) |
