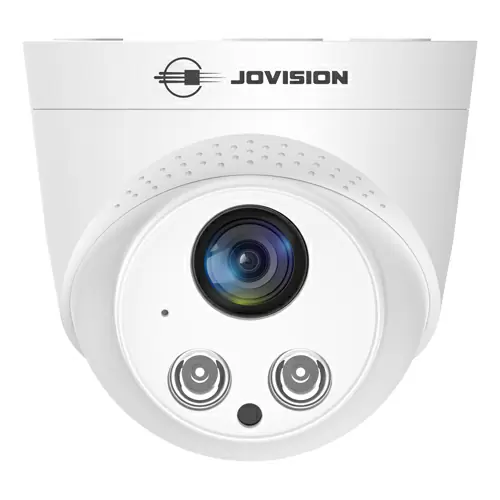

Jovision Full-Color 3MP Dome IP Camera & Audio
3MP Dome Full-Color Audio IP Camera. Two-color light LED: 28µx2PCS, Board Len 2.8mm/F2.0, Case: Plastic, Ingress Protection: IP54, Built-in Mic and Speaker, With PoE
-
2-Year Warranty
Estimate delivery times: 1-3 days (Victoria), 3-5 days (Interstate).
Guaranteed Safe Checkout
SKU |
JVS-N936-MDL |
Category |
Dome/Turret Cameras |
JVS-N936-MDL
3MP Dome Full-Color Audio IP Camera
Features
- Light's On When People Come, Light's Off When People Leave
- Double Wick, Two warm light, Two infrared
- Support Humanoid Detection
- Support Region Intrusion Detection, Line Crossing Detection, Video Tampering Detection, Defocus Detection
- Equipped With unique VQC (Video Quality Catalyst) Technology
- Built-in MIC and Speaker
Specifications
| Video | |
| Image Sensor | 1/2.8" CMOS Sensor |
| Max Resolution | 2304x1296 |
| Effective Pixels | 3.0MP |
| Compression Standard | H.265/H.264 |
| Frame Rate | 25fps |
| Bit Rate | 128Kbps~4096Kbps |
| SNR (dB) | 52dB |
| Min. Illumination | 0Lux (IR ON) |
| Lens | |
| Lens | 2.8mm(M12) |
| FOV | H:100.4°, V:53.9°, D:118.6° |
| Lights | 2 Warm Light LEDs + 2 IR LEDs |
| IR Distance | IR: Up to 30 MetersWarm Light: Up to 30 Meters |
| Function | |
| Exposure Control | Auto |
| White Balance | Auto |
| Gain Control | Auto |
| Image Enhancement | 3D DNR |
| Advanced OSD | Support OSD large font function, OSD flashing on alarm, OSD and time to set the position separately |
| Motion Detection | Support Humanoid Detection |
| Image Setting | Flip, Saturation, Brightness, Contrast, Sharpness |
| Day and night function | Day and night automatic switching |
| Privacy Mask | Support up to 8 areas |
| Intelligent Analysis | Region Intrusion Detection, Line Crossing Detection, Video Tampering Detection, Defocus Detection |
| Alarm Method | Email Alarm, Client Alarm |
| Remote Operation | System, Audio and video, Image, Alarm, Network management |
| Expansion Interface | Built-in MIC and Speaker |
| Network | |
| Ethernet | 10M / 100M Ethernet ,1 RJ45 |
| Stream | 2x Streams |
| Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| ONVIF | Standard ONVIF |
| Network transmission | CloudSEE 2.0, GB28181 |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General | |
| Power Supply | DC12V/2A or PoE |
| Power Consumption | <3W (During day); <6W (At night) |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% Rh |
| Material | White/Plastic |
| Dimensions (WxHxD) | 100x84x100mm |
| Weight | 210g |
| Resolution | 3MP |
| IP Protection Rating | IP54 |
| Camera Type | Dome Camera |
| Connectivity | PoE |
| Night Vision Range | Up to 30M |
| Special Features | Video Tampering Detection |
| Audio Function | Built-in Mic and Speaker |
